Module's Selected Major Components
My Role & Responsibilities
I am responsible for the Camera Actuation subsystem. This subsystem controls two stepper motor drivers to rotate a low-weight camera and uses a Hall effect sensor to establish a repeatable “home” position reference. The microcontroller generates STEP and DIR pulse signals (and enable control) for each motor driver, reads the Hall sensor as a digital interrupt input for homing, and communicates with the Control subsystem through a UART RX/TX link. The subsystem uses a 12V motor power rail for the stepper drivers/motors and a regulated 3.3V rail for the microcontroller and logic signals. The design prioritizes clean power distribution, grounding, and debouncing/filtering to prevent motor noise from causing resets or false home triggers.
Module's Selected Major Components
Power Management

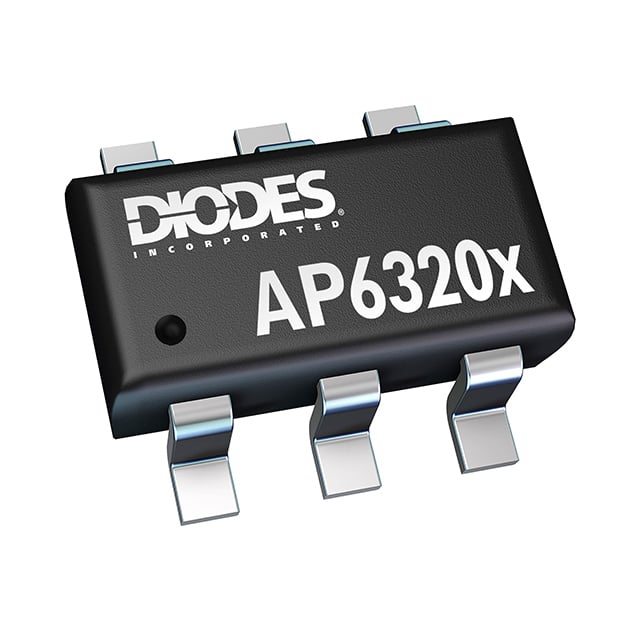

AP63203WU-7
- Package: TSOT-23-6
- Output: Fixed 3.3V
- Max Current: 2A
- Input Range: 3.8V – 32V
- Approx. Price: ~\(0.50–\)0.80
- Product Page
| Pros | Cons |
|---|---|
| High output current (2A) | Requires careful PCB layout |
| Wide input range (good for 12V systems) | Needs external inductor and capacitors |
| High efficiency | Small package harder to solder |
| Well-documented |

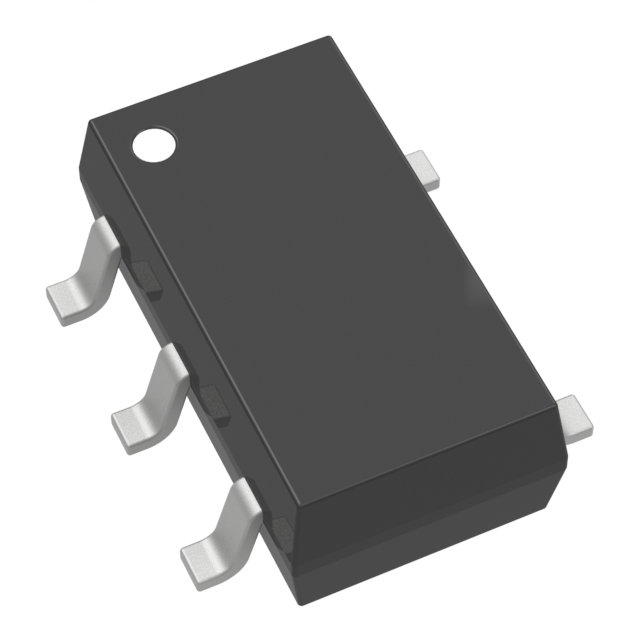

RT8008-33GB
- Package: SOT-23-5
- Output: Fixed 3.3V
- Max Current: ~600mA
- Input Range: Up to ~23V
- Approx. Price: ~\(1.30–\)1.50
- Product Page
| Pros | Cons |
|---|---|
| Very small footprint | Lower max current |
| Fixed 3.3V simplifies design | Not ideal for ESP32 + expansion |
| Fewer pins | Narrower input range |
MP2451DT-LF-Z (Fixed 3.3V Variant)
- Package: TSOT-23-6
- Output: Fixed 3.3V
- Max Current: 1A
- Input Range: Up to 36V
- Approx. Price: ~\(2.00–\)2.50
- Product Page
| Pros | Cons |
|---|---|
| Handles higher input voltage | More expensive |
| Good efficiency | Lower current than AP63203 |
| Compact package | Requires careful layout |
Choice:
The AP63203 was selected because it provides enough current headroom for possible expansion or future design changes. It also offers relatively low EMI performance compared to many low-cost buck regulators, helping prevent signal integrity issues and noise coupling when designing the PCB for mixed motor and logic systems.
Sensor

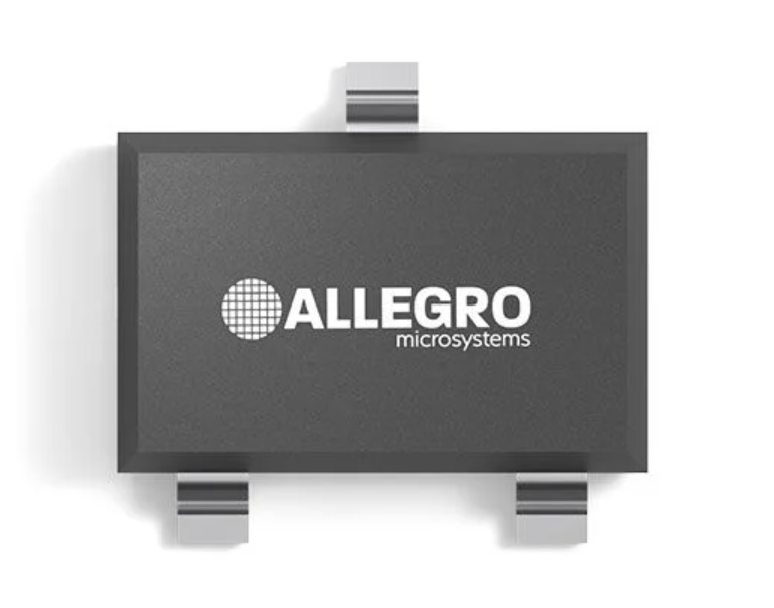

Allegro A1324 (SOT-23W Linear Hall Sensor)
- Manufacturer: Allegro MicroSystems
- Type: Linear Analog Hall Sensor
- Operating Voltage: 3.0V – 5.5V
- Package: SOT-23W
- Approx. Price: ~\(1.00–\)1.50
- Product Page
| Pros | Cons |
|---|---|
| Analog output allows measurable value | Requires ADC |
| Enables firmware thresholding | Requires calibration |
| Compact SMD footprint | Slight firmware complexity |
TI DRV5053 (Selected)
- Manufacturer: Texas Instruments
- Type: Linear Analog Hall Sensor
- Operating Voltage: 2.7V – 6.0V
- Package: SOT-23 / SON
- Approx. Price: ~\(1.50–\)2.50
- Product Page
| Pros | Cons |
|---|---|
| Clean analog output | Requires ADC |
| Stable and noise resistant | Slightly higher cost |
| 3.3V compatible |
Diodes Inc. AH337
- Manufacturer: Diodes Incorporated
- Type: Linear Analog Hall Sensor
- Operating Voltage: 3.0V – 5.5V
- Package: SOT-23
- Approx. Price: ~\(0.80–\)1.30
- Product Page
| Pros | Cons |
|---|---|
| Low cost | Requires ADC |
| Small footprint | Needs thresholding |
| Easy PCB integration | Mid-rail interpretation needed |
Selection Rationale:
The TI DRV5053 was selected as the analog Hall sensor option for repeatable home position detection during camera sweep startup. Its linear analog output provides a measurable voltage proportional to magnetic field strength, allowing the ESP32 to determine the home threshold using the ADC. This enables more precise positioning compared to a digital switch by allowing firmware-based filtering, hysteresis, and calibration for consistent repeatability.
Actuator

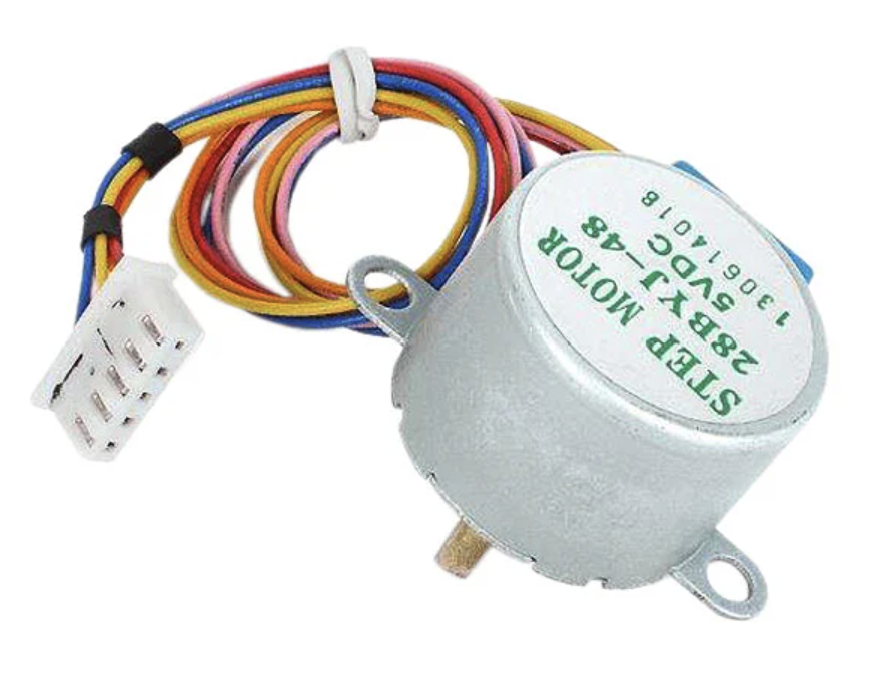

28BYJ-48 High Quality Stepper Motor
- Type: 4-phase unipolar
- Operating Voltage: 12 V
- Rated Current: ~50 mA/phase
- Step Angle: 5.625°/64
- Approx. Price: ~\(1–\)2
- Product Page
| Pros | Cons |
|---|---|
| Very low current | Lower precision |
| Inexpensive | Plastic gears |

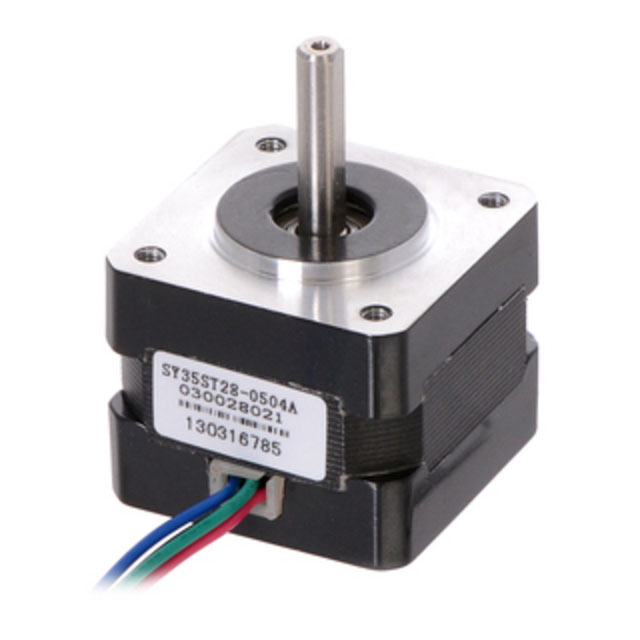

Stepperonline NEMA 14 Bipolar Motor (Selected)
- Type: NEMA 14 bipolar
- Step Angle: 1.8°
- Rated Current: ~0.4 A/phase
- Operating Voltage: 12 V
- Approx. Price: ~\(9–\)20
- Product Page
| Pros | Cons |
|---|---|
| Moderate torque | Larger footprint |
| Precision stepping | Requires driver tuning |

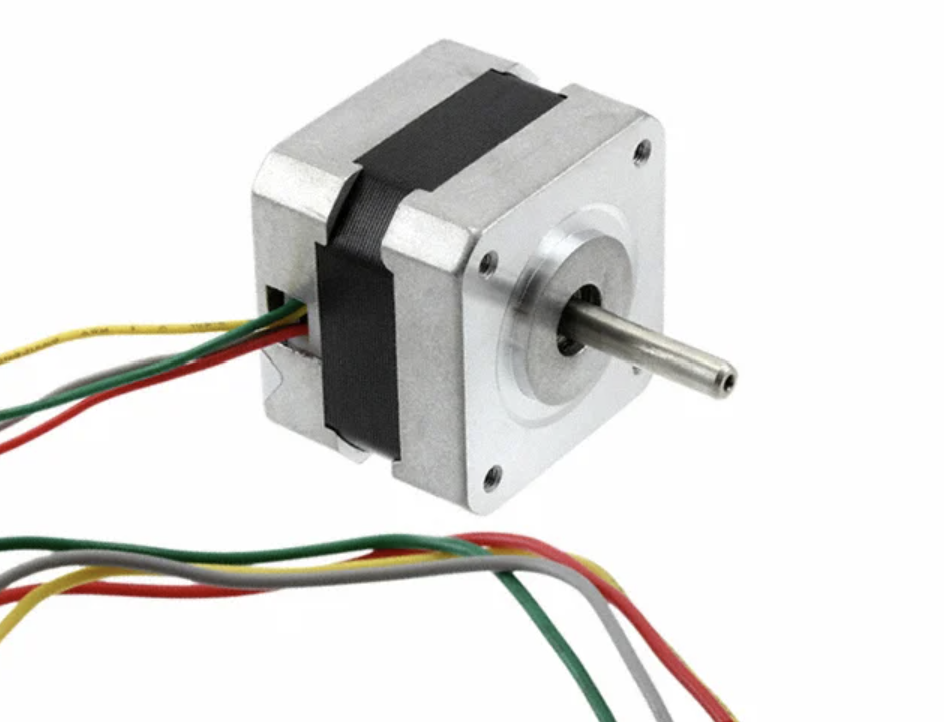

NEMA-17 Size Stepper Motor
- Type: Bipolar
- Step Angle: 1.8°
- Rated Current: ~0.35 A/phase
- Operating Voltage: 12 V
- Approx. Price: ~\(13–\)15
- Product Page
| Pros | Cons |
|---|---|
| Higher torque | Larger size |
| Smooth motion | More than needed |
Selection Rationale:
The NEMA 14 bipolar stepper offers higher precision and smoother motion than small geared motors while keeping current modest enough for efficient 12 V drivers. Its 1.8° step angle provides fine resolution, and its compact frame fits well within a lightweight camera actuation subsystem. This makes it an ideal balance between size, precision, and power consumption.
Stepper Driver Selection

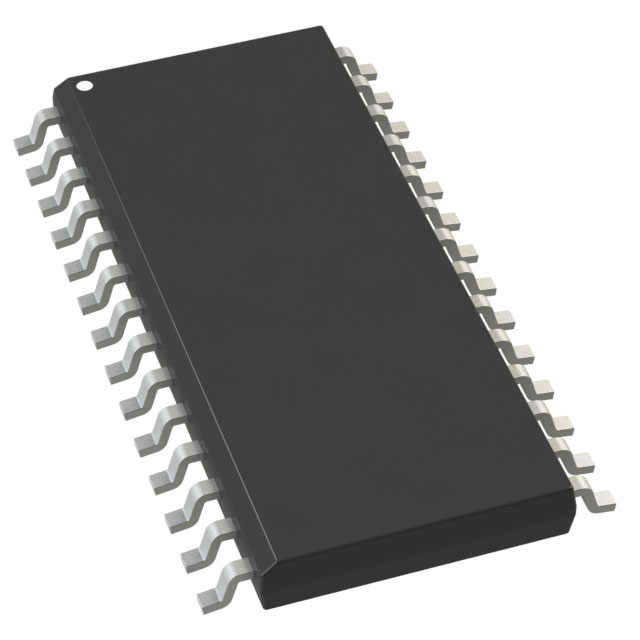

DRV8825
- Operating Voltage: 8.2V – 45V
- Max Current: ~2.2A/phase
- Microstepping: Up to 1/32
- Approx. Price: ~\(3–\)5
- Product Page
| Pros | Cons |
|---|---|
| Works natively at 12V | Requires current adjustment |
| High headroom | Larger module footprint |
| Reliable and documented |

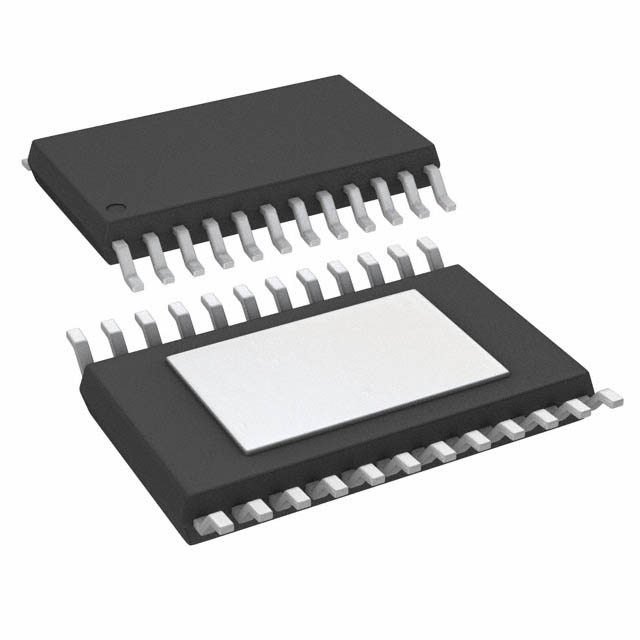

DRV8834
- Operating Voltage: 2.5V – 10.8V
- Max Current: ~1.5A/phase
- Microstepping: Up to 1/32
- Approx. Price: ~\(5–\)8
- Product Page
| Pros | Cons |
|---|---|
| Compact SMD | Slightly low voltage rating |
| Good for integration | Layout complexity |

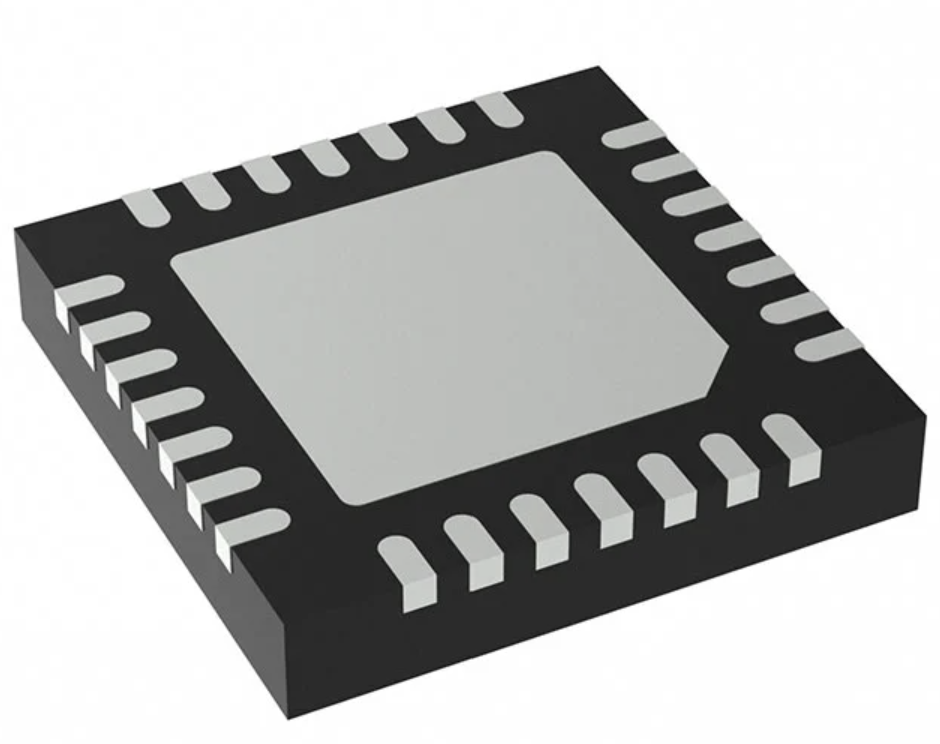

TMC2209
- Operating Voltage: 4.75V – 36V
- Max Current: ~1.2A RMS
- Microstepping: Up to 1/256
- Approx. Price: ~\(6–\)10
- Product Page
| Pros | Cons |
|---|---|
| Very smooth/quiet | Higher cost |
| Excellent current control | More complex configuration |
Selection Rationale:
The DRV8825 is a robust and widely used bipolar stepper driver well suited for the selected NEMA 14 motor (~0.4 A/phase). Its wide voltage range makes it ideal for a 12 V system, and its built-in current limiting ensures safe motor operation. Microstepping support allows smooth camera sweep motion. Due to its reliability, strong documentation base, and ease of integration with STEP/DIR control from the ESP32, it represents a low-risk and well-supported solution for this subsystem.
